Arabidopsis CROWDED NUCLEI (CRWN) proteins are required for nuclear size control and heterochromatin organization

BMC Plant Biologyvolume13, Article number:200(2013)Cite this article

Abstract

Background

Plant nuclei superficially resemble animal and fungal nuclei, but the machinery and processes that underlie nuclear organization in these eukaryotic lineages appear to be evolutionarily distinct. Among the candidates for nuclear architectural elements in plants are coiled-coil proteins in the NMCP (Nuclear Matrix Constituent Protein) family. Using genetic and cytological approaches, we dissect the function of the four NMCP family proteins in Arabidopsis encoded by theCRWNgenes, which were originally namedLINC(LITTLE NUCLEI).

Results

CRWN proteins are essential for viability as evidenced by the inability to recover mutants that have disruptions in all fourCRWNgenes. Mutants deficient in different combinations of the four CRWN paralogs exhibit altered nuclear organization, including reduced nuclear size, aberrant nuclear shape and abnormal spatial organization of constitutive heterochromatin. Our results demonstrate functional diversification among CRWN paralogs; CRWN1 plays the predominant role in control of nuclear size and shape followed by CRWN4. Proper chromocenter organization is most sensitive to the deficiency of CRWN4. The reduction in nuclear volume incrwnmutants in the absence of a commensurate reduction in endoreduplication levels leads to an increase in average nuclear DNA density.

Conclusions

Our findings indicate that CRWN proteins are important architectural components of plant nuclei that play diverse roles in both heterochromatin organization and the control of nuclear morphology.

Background

The cellular components and processes that specify nuclear size, shape and internal organization are poorly understood, particularly in flowering plants. Despite similarities at the gross morphological level among all eukaryotic nuclei, such as a double-membrane boundary perforated with nuclear pores, most of the proteins known to affect nuclear structure in animals are not evolutionarily conserved and are consequently difficult to recognize or absent entirely in plant proteomes [1–3]. These observations indicate that the machinery, and perhaps the principles, specifying nuclear organization in flowering plants are distinct from those operating in animals and represent a convergent evolutionary path to a canonical nuclear organization in eukaryotic cells [4].

We demonstrated previously [5,6] that two paralogous Arabidopsis coiled-coil proteins, originally named LITTLE NUCLEI 1 and 2 (LINC1 & 2), play important roles in specifying nuclear shape and size. Supporting this conclusion, Sakamoto and Takagi recently reported that disruption ofLINC4, another of the four paralogous genes in this family, leads to reduced nuclear size and loss of elongated nuclear shape in differentiated cells, mirroring the phenotype oflinc1mutants [7]. These proteins are closely related to NMCP1, Nuclear Matrix Constituent Protein 1, originally identified as a protein residing on the periphery of carrot nuclei and a component of the salt-resistant nuclear matrix [8]. Although NMCP1 and related proteins are plant-specific and share no significant amino acid similarity to lamins, their tripartite structure with an extensive central coiled-coil domain and their localization at the nuclear periphery suggest that NMCP1-related plant proteins might be functional analogs of this core component of the animal nuclear lamina [9,10]. More recent computational analysis [11], however, has suggested that the NMCP class of plant proteins shares more structural similarities to myosins or paramyosins than to lamins.

Here, we extend our reverse genetic analysis to encompass all four members of the Arabidopsis NMCP-related protein family, which we have renamed CRWN (CROWDED NUCLEI) to avoid confusion with the acronym LINC (LINKER of NUCLEOSKELETON and CYTOSKELETON) that refers to SUN-KASH protein linkages that bridge the inner and outer nuclear membrane [12–16]. Our findings demonstrate that CRWN proteins are essential for viability, and our analyses uncover complex functional diversification among CRWN proteins with regards to their effects on whole-plant morphology, nuclear size, and the spatial organization of constitutive heterochromatin aggregates (chromocenters) in interphase nuclei. We found that CRWN1 plays the most prominent role among CRWN paralogs in controlling nuclear size, while CRWN4 has the most important role in controlling the distribution and number of heterochromatic chromocenters. The reduced nuclear size incrwnmutants is not matched by a commensurate reduction in endopolyploid levels, resulting in increased nuclear DNA densities (mass per unit volume) up to four-fold higher than wild type levels.

Results

We performed a phylogenetic analysis of Arabidopsis CRWN proteins and their homologues in other species to begin our investigation of the potential diversification within this family. The predicted Arabidopsis proteome contains four closely related CRWN proteins (CRWN1 through 4) that share 30-40% amino acid identity; no other Arabidopsis proteins with extended regions of significant amino acid identity to CRWN proteins were found. Similar proteins were found in other plant species, but interestingly, no fungi or animal CRWN homologues were identified from searches of protein databases. In addition, CRWN homologues were absent in the predicted proteome of the green algae Chlamydomonas and Volvox.

We constructed a phylogram of CRWN proteins and related plant homologs using a maximum likelihood algorithm (Figure1and Additional file1: Table S1). The tree features two major clades distinct from CRWN homologues in two basal plants,Selaginella moellendorffiiandPhyscomitrella patens. One clade includes three of the Arabidopsis paralogs, CRWN1, CRWN2 and CRWN3, while CRWN4 belongs to the other clade. Within each clade, the monocot proteins, represented by maize, sorghum and rice, group independently from the dicot proteins. Only two CRWN paralogs exist in these monocots – one CRWN1-like and one CRWN4-like. However, certain dicot species, such as Arabidopsis, poplar, grape, and castor bean, contain multiple copies of CRWN1-like proteins. The dicot CRWN4-like proteins are also distinct from their monocot counterparts in lacking a conserved amino acid motif at the extreme C-terminus (yellow inset in Figure1and Additional file2).

Figure 1
figure 1

Phylogenetic relationships among CRWN proteins.A maximum likelihood tree of CRWN homologs constructed from an alignment of amino acid sequences that correspond to the coiled-coil domains. Bootstrap values (of 1000 replicates) are indicated on each branch. TheA. thalianaCRWN proteins are indicated in bold, and homologs are labeled with the genus name and an assigned number (Additional file1: Table S1). Two major clades are marked by blue and green; the yellow inset oval indicates a subgroup of CRWN4-like proteins from dicots that lack the conserved C-terminal domain (Additional file2).

Full size image

Genetic redundancy in the CRWN family

The inference that CRWN4 and related proteins are divergent from members of the CRWN1-containing clade was supported by genetic analyses to dissect the functions of theCRWNparalogs. We used Agrobacterium T-DNA insertion alleles to study the effects of inactivating different combinations ofCRWNgenes [17]. Previously, we demonstrated that thecrwn1-1andcrwn2-1 T-DNA alleles severely reduce or eliminate transcription downstream of the T-DNA insertion [5]. Here, we performed transcript analysis by RT-PCR for thecrwn3-1andcrwn4-1alleles used in this study (Additional file3). Forcrwn3-1, some transcript was detected downstream of the insertion; however, no transcript could be detected using primers that flanked the insertion. Thecrwn4-1insertion blocked transcription downstream of the T-DNA. The lack of full-lengthCRWNtranscripts from homozygous mutant lines indicates that all four mutations used in this study are likely to be loss-of-function alleles. We note that theCRWN基因有类似的发育基因表达patterns: the steady-state abundance of transcripts for all four paralogs peak in proliferating tissues (http://bar.utoronto.ca/efp/cgi-bin/efpWeb.cgi) [18].

Mutant plants carrying single insertions were intercrossed and progeny carrying homozygous insertions in different combinations were recovered. Figure2shows the whole-plant phenotype of the viable mutants at the rosette stage just after the transition to flowering. Plants carrying a mutation in any singleCRWNgene had phenotypes similar to wild-type Columbia plants, as did the doublecrwn2 crwn3andcrwn3 crwn4mutants. Thecrwn2 crwn4andcrwn1 crwn4double mutants exhibited slightly smaller rosettes, while the remaining double mutants,crwn1 crwn2andcrwn1 crwn3, displayed markedly smaller rosette sizes. We were able to recover only two of the four triple mutants -crwn1 crwn2 crwn4andcrwn1 crwn3 crwn4, both of which were extremely stunted and set few seed.

Figure 2
figure 2

Whole plant phenotypes ofcrwnmutants.Leaf rosette structure of one month-old plants imaged just after initiation of flowering. Representative plants for the various genotypes are compared to a wild type (WT) Columbia plant. All plants were grown in parallel and photographed at the same magnification; the diameter of a WT rosette at flowering is ca. 8 cm.

Full size image

Our inability to isolate a mutant combining alleles in all fourCRWNgenes indicates that at least one functional CRWN protein is required for viability. Triple mutant plants carrying only CRWN2 or CRWN3 were extremely stunted, but still viable. This result suggests that CRWN2 or CRWN3 alone can cover the minimum requirements for the entire CRWN protein family. However, plants carrying onlyCRWN1or onlyCRWN4were not recovered, suggesting that CRWN1 and CRWN4 are specialized and that neither protein alone can express the full range of functions of the CRWN protein family.

CRWN proteins are required to maintain proper nuclear size and shape

We next observedcrwnmutant nuclei from adult leaf tissue to determine the role of different CRWN proteins in specifying nuclear size and shape. Among the single mutants, a deficiency ofCRWN1orCRWN4reduced nuclear size (Figures3and4A; Additional file4), while loss of CRWN2 or CRWN3 had no effect. Combining acrwn1mutation with acrwn2orcrwn3mutation had a synergistic effect on nuclear size, suggesting that CRWN1 function overlaps, at least partially, with those of CRWN2 and CRWN3. Double mutant combinations containingcrwn4and eithercrwn2orcrwn3did not show additive phenotypes but rather resembledcrwn4. In contrast, combination of acrwn1with acrwn4mutation had an additive effect on nuclear size. These findings indicate that CRWN1 and CRWN4 are the major determinants of nuclear size among the CRWN paralogs. Further, the additive effects ofcrwn1andcrwn4mutations suggest CRWN4 acts independently from CRWN1, consistent with their distinct phylogenetic grouping (Figure1) and the genetic analysis shown in Figure2.

Figure 3
figure 3

Nuclear phenotypes ofcrwnmutants.Images of representative DAPI-stained adult leaf cell nuclei from wild type and the twelve viablecrwnmutants. The top row contains the wild type control andcrwn2,crwn3andcrwn2 crwn3mutants with normal nuclear morphology phenotypes. The middle row shows nuclear phenotypes ofcrwn1and double mutants containing acrwn1mutation. The bottom row displays nuclear phenotypes fromcrwn4mutants, as well as higher-order mutants containing acrwn4mutation. The arrowheads highlight thin projections fromcrwn4nuclei. A 5 μm size bar is shown in the upper left inset; all images are shown at the same magnification.

Full size image
Figure 4
figure 4

The effects ofcrwnmutations on nuclear size and nuclear DNA density in leaf cells. (A)Developmentally matched rosette leaves from approximately one month-old plants were fixed, cells isolated and stained with DAPI, and nuclei imaged using epifluorescence microscopy. The average areas of randomly-selected individual nuclei (n = 32–108) were determined for each genotype. Error bars indicated standard error of the mean.(B)Nuclear area measurements from panelA(see also, Additional file4) were converted to relative values and were plotted against average endopolyploidy level for each genotype expressed as a fraction of the wild-type value. The average endopolyploidy levels (Additional file4) were measured by flow cytometry using corresponding leaf samples. The diagonal dashed line indicates the expected linear relationship between nuclear area and endopolyploid level observed in wild-type plants. Note that panelAmeasures nuclear area but the isolated nuclei are flattened under a coverslip to a uniform thickness (see Additional file6) and therefore nuclear area is proportional to and therefore a proxy for nuclear volume. The numbers next to the symbols indicate the correspondingcrwngenotype. Data points above the dashed line indicate an elevated nuclear DNA density relative to wild type. The solid line corresponds to a nuclear DNA density four-times that of wild type.

Full size image

CRWN proteins are required for development or maintenance of the elongated spindle shapes which characterize larger nuclei in differentiated wild-type cells [19]. We previously reported that a deficiency ofCRWN1causes nuclei in all cells to adopt the spherical shape characteristic of proliferating tissue at root and shoot apices [5]. The present study confirmed the importance of CRWN1 for nuclear shape differentiation and also uncovered a similar role for CRWN4 (Figure3), a conclusion also reached recently by Sakamoto and Takagi [7]. Nuclei fromcrwn4leaf tissue often have irregular margins and are more spherically shaped, compared to wild-type nuclei (Additional file5). However,crwn4nuclei are less uniformly round in comparison tocrwn1nuclei, particularly largercrwn4nuclei. Further,crwn4nuclei occasionally contain thin projections that appear to be drawn from the nuclear surface (arrowheads in Figure3).

Loss of CRWN proteins affects nuclear DNA packing density

The direct correlation between endopolyploidy and nuclear size in wild-type Arabidopsis cells [20] prompted us to examine this relationship within thecrwnmutants. We measured the average endopolyploidy level of nuclei from the same adult leaves harvested for the nuclear size analysis shown in Figure4A (see also Additional file4). Somecrwnmutants showed a decrease in endopolyploid levels, particularly thecrwntriple mutants and thecrwn1 crwn2double mutant, but the remainingcrwngenotypes had average endopolyploidy levels that approached wild-type levels (Figure4B). The dashed line in Figure4B depicts the expected nuclear size change in response to a reduction in endopolyploidy based on the established one-to-one relationship between nuclear volume (approximated by nuclear area in our measurements of isolated and flattened leaf cell nuclei, Additional file6) and DNA content in wild type plants. With the exception ofcrwn2andcrwn3, thecrwnmutations caused a more pronounced reduction in nuclear size than predicted from the observed endopolyploidy level. As a consequence,crwnmutants display a spectrum of nuclear DNA densities, ranging from wild-type values incrwn2andcrwn3mutants to four-fold higher densities incrwn1 crwn2double mutants and the two viablecrwntriple mutants.

We then investigated the relationship between nuclear size and DNA content by examining the effects of differentcrwngenotypes on nuclear size in leaf guard cells, a diploid cell type where endopolyploidy is not a factor [21].crwn1mutant guard cell nuclei were smaller than nuclei in wild type cells with an area approximately one-half of the wild type value, corresponding to a volume difference of approximately threefold assuming a roughly spherical shape to nuclei in the cell (Figure5). Double and triple mutants lackingCRWN1displayed nuclear sizes similar to thecrwn1single mutant. Consistent with their effects on nuclear size shown in Figure4A, neither thecrwn2norcrwn3mutation affected nuclear size in guard cells. Interestingly, the size of nuclei incrwn4guard cells was also unaffected, in contrast to the effect seen in a population of adult leaf cells (Figure4A). However,crwn2 crwn3,crwn2 crwn4, andcrwn3 crwn4double mutants had nuclei approximately 20% smaller than those seen in wild-type guard cells, suggesting some functional redundancy among CRWN2, CRWN3 and CRWN4 proteins. Overall, our results indicate thatCRWN1plays the major role in affecting nuclear size in the absence of changes in endopolyploidy.

Figure 5
figure 5

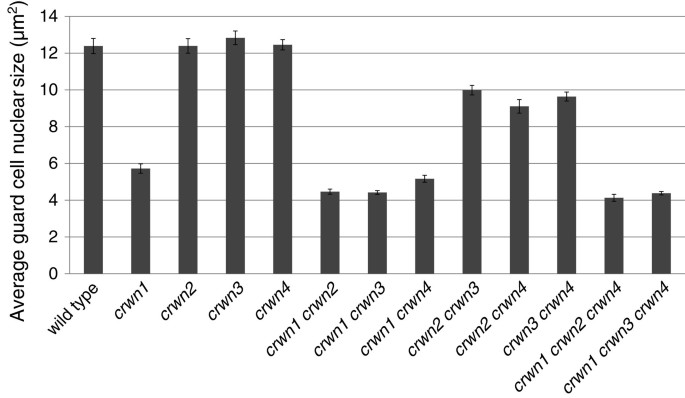

Average leaf guard cell nuclear sizes incrwnmutants.Two week-old plants were harvested, fixed, stained with DAPI, and leaf guard cell nuclei were imaged using confocal laser scanning microscopy. The area of randomly-selected individual nuclei (n = 19–29) were determined for each genotype. Error bars indicated standard error of the mean.

Full size image

CRWN4 maintains interphase chromocenter integrity and organization

Considering the dramatic effects ofcrwnmutations on nuclear size and morphology, we turned our attention to the role of CRWN proteins on the internal organization of the nucleus. A conspicuous feature of Arabidopsis interphase nuclei are discrete foci of heterochromatin, or chromocenters, visualized as bright spots after staining with fluorescent DNA-intercalating dyes [22]. A typical interphase nucleus contains approximately ten chromocenters corresponding to the number of diploid chromosomes (2n = 10) [23]. Chromocenter number remains fairly constant over a wide range of nuclear sizes and endopolyploid levels (2n to 16n), most likely as a result of lateral association of sister chromatids after endoreduplication [24,25]. We found that the average chromocenter number incrwn1,crwn2andcrwn3leaf cell nuclei was similar to that seen in wild-type leaf cell nuclei (Figure6A) and did not change dramatically as a function of nuclear size. Incrwn4nuclei, however, chromocenter number was strongly correlated with nuclear size (Figure6A): smaller nuclei contained fewer chromocenters than the wild-type value of ~9, while larger, presumably endopolyploid,crwn4nuclei exhibited a wide range of chromocenter numbers (2–27). A similar pattern was observed in double mutants containing thecrwn4mutation (Additional file7). In contrast, double mutants containing thecrwn1allele paired with anothercrwn突变降低平均染色中心显示number with a weaker association with nuclear size (Figure6A and Additional file7).

Figure 6
figure 6

Chromocenter morphology changes incrwnmutants. (A)核成像从发展匹配的罗依sette leaves from approximately one month-old plants, cells isolated and stained with DAPI, and nuclei imaged using epifluorescence microscopy. The area and chromocenter number of randomly-selected individual nuclei (n = 47–132) were determined for each genotype, and chromocenter number was plotted against nuclear area. A linear regression line showing the relationship between chromocenter number and nuclear size (as a proxy for endopolyploidy level) was plotted for each genotype.(B)核成像是完全展开玫瑰叶子from approximately one month-old plants and the chromocenter Aggregation Index (AI) was plotted against the total chromocenter area (μm2).

Full size image

To explore the chromocenter phenotype in more detail, we developed a statistic, referred to as an aggregation index (AI) (see Methods), to characterize the distribution of visible DAPI-bright spots within interphase nuclei. The value of this index ranges from 0 to 1, reflecting both the number of distinct chromocenter spots and the uniformity of their size distribution. The expected AI for wild-type nuclei containing 10 equally sized chromocenters is 0.1, while clustering of chromocenters into fewer but larger aggregates will lead to a higher AI value. A dispersal of chromocenters into smaller heterochromatic satellites will push the AI lower. For a given chromocenter number, a skewed CC size distribution is associated with a larger AI compared to when each CC is equally sized. As shown in Figure6B, the AI index of wild-type nuclei averaged close to 0.1 and was not affected significantly by nuclear size. The absence of a significant correlation between AI and nuclear size indicates that chromocenter organization remains constant across different endopolyploidy levels in wild-type nuclei. A similar pattern was observed for thecrwn1,crwn2, andcrwn3mutant samples. In contrast, combiningcrwn1andcrwn2mutations led to an approximately two-fold higher AI over a range of nuclear sizes, consistent with the two-fold reduction in chromocenter number via aggregation incrwn1 crwn2mutants. A different pattern was displayed in thecrwn4sample, which displayed a negative correlation between AI and nuclear size. This result suggests a tendency for chromocenters to aggregate in smallercrwn4nuclei and to become dispersed in largercrwn4nuclei. The reduction in chromocenter number incrwn1 crwn2andcrwn4mutants with smaller nuclei could reflect the aggregation of individual chromocenters in the limited confines of these nuclei, but a similar clustering does not occur in small wild-type nuclei, arguing that small nuclear dimensions alone are insufficient to cause clustering. The variability in chromocenter size and number incrwnmutant nuclei suggests that CRWN proteins are required for proper organization of heterochromatin in interphase nuclei.

We tested this hypothesis by visualizing the spatial arrangement of chromocenter-associated genomic regions incrwn1 crwn2andcrwn4mutants. Arabidopsis chromocenters are comprised of large segments of repetitive DNA such as the tandemly-arrayed centromeric and 5S RNA repeats located within pericentromeric regions [23]. Using fluorescentin situhybridization (FISH), we examined the spatial organization of the major 180-bp centromeric tandem repeat and the 5S RNA gene arrays in both large and small nuclei from wild-type,crwn1 crwn2andcrwn4plants (Figure7A, B). The centromeric and 5S RNA repeats were co-localized with the DAPI-bright spots in both small and large wild-type nuclei, confirming previous reports that these sequences are normally compartmentalized within chromocenters at the nuclear periphery [26] (see Additional file8:电影S1)。这是常见的寻找decondensed centromere signal at several chromocenters in wild-type nuclei; however, decondensed centromeric repeat clusters were infrequently observed incrwn1 crwn2nuclei and the total number of clusters was reduced (Figure7C) (also see Additional file8: Movie S2). These findings indicate that there is a compaction of the centromere repeat arrays within coalesced chromocenters incrwn1 crwn2nuclei. In contrast, the number of discrete centromere repeat clusters visible incrwn4nuclei was more variable, and decondensed signals were often seen in nuclei with numerous clusters. This pattern is consistent with the hypothesis that chromocenters become dispersed in largercrwn4nuclei. A similar but more pronounced trend was seen for the 5S RNA gene arrays (Figure7B, D), which were dispersed outside chromocenter aggregates in roughly one-half of thecrwn4nuclei. We note that the dispersed 5S RNA gene signal remained localized to the nuclear periphery (see Additional file8: Movie S3). The apparent dispersal of chromocenters in largercrwn4nuclei and the mis-positioning of centromeric and 5S RNA repeats outside of the chromocenter indicates that higher-order organization of heterochromatin breaks down in interphase in the absence of CRWN4.

Figure 7
figure 7

Chromocenter organization is altered incrwn1 crwn2andcrwn4mutants. (A and B)Fluorescencein situhybridization of representative small and large nuclei from wild type,crwn1 crwn2andcrwn4cells prepared from leaves of adult plants after bolting. Blue: DAPI, pink: 180-bp centromere repeats, green: 5S RNA genes, bar, 5 μm.(C)The distribution of nuclei based on the number of centromere repeat clusters in different genotypes. Each circle represents an individual nucleus in the FISH experiment. The color indicates the level of decondensation of the centromere signal.(D)The distribution of nuclei based on the number of 5S RNA repeat clusters in different genotypes. Each circle represents an individual nucleus. The color indicates the level of dispersion of the 5S repeat signal.

Full size image

Discussion

Our results demonstrate that the CRWN family is essential for viability in Arabidopsis and required for proper nuclear organization. Redundancy and diversification exists among the four CRWN paralogs, which belong to a plant-specific family of nuclear coiled-coil proteins that forms two clades: one including CRWN1, CRWN2 and CRWN3 and the other containing CRWN4 (Figure1). The divergence of CRWN4 relative to the other CRWN paralogs, also reported by Kimura et al. (2010) [10] and Ciska et al. (2013) [9], is supported by our genetic analysis. First, the inviability of triple mutants containing eitherCRWN1orCRWN4alone indicates that CRWN1 and CRWN4 possess non-overlapping functions (Figure2). Second, loss-of-function mutations inCRWN1andCRWN4have distinct phenotypes; for example,crwn1is the onlycrwnmutation that affects nuclear size in diploid guard cells (Figure5), while the dispersed chromocenter phenotype is unique to thecrwn4mutant (Figures3and7). Finally, the functional distinction between the two CRWN clades is supported by taxa, such as rice and maize, which contain only two CRWN-like proteins: one CRWN1-like and one CRWN4-like.

The phenotypic effects of combining mutations in differentCRWNgenes demonstrates that all four paralogs are involved in specifying nuclear size in adult cells. A deficiency in CRWN1 led to a dramatic reduction in nuclear size independent of an effect on endopolyploidy (Figure4). Loss of CRWN4 also reduced nuclear size in leaf cells (Figure4) as was recently shown by Sakamoto and Takagi (2013) [7]. Interestingly,crwn4nuclei in leaf guard cells were not reduced in size (Figure5), despite the fact thatCRWN4is expressed in this cell type (http://bar.utoronto.ca/efp/cgi-bin/efpWeb.cgi) [18], suggesting cell-type specific requirements exist for different CRWN proteins. Combining acrwn1loss-of-function mutation with a deficiency in any of the remaining three paralogs causes a further reduction in nuclear size in leaf cells. The additive effect on nuclear size indicates that CRWN2 and CRWN3 share overlapping functions with CRWN1, although loss of CRWN2 and/or CRWN3 has no effect on nuclear size or endopolyploidy in leaf cells when a functionalCRWN1allele is present. We previously reported that thecrwn2-1allele caused a reduction in nuclear size in leaf cells [5]; the reason for the different behavior displayed in this study is unknown, but we have noted variability in nuclear phenotypes among differentcrwn2mutant lines. Regardless, it is clear that CRWN1 plays the major role in adult leaf tissue among the three paralogs in the CRWN1-like clade. This situation might reflect the higher level of expression ofCRWN1in leaf tissue compared toCRWN2andCRWN3– ca. 30 FPKM (fragment per kilobase/million mapped RNA-seq reads) forCRWN1, with 4× and 2× less expression fromCRWN2andCRWN3, respectively (data not shown). Alternatively, the different contributions ofCRWN1-like genes could also result from structural differences among the encoded proteins.

Our data indicate that the primary phenotype ofcrwnmutants is a reduction in nuclear size and that the reduction in endopolyploidy observed in double and triplecrwnmutants is a secondary effect in response to reduced nuclear size. First, mutation of eitherCRWN1orCRWN4had an effect on nuclear size in leaf cells without affecting endopolyploidy (Figure4) (see also [7]). Second, effects on endopolyploid levels were only seen in mutants that contained two or morecrwnmutations and exhibited severely reduced nuclear size. These considerations indicate that loss of CRWN activity alters the relationship between DNA content and nuclear volume, leading to a higher than normal nuclear DNA density. In the most severely affected mutants, the nuclear DNA density reaches four times the level seen in wild-type cells. It is intriguing that thecrwnmutants with the most abnormal whole-plant dwarfing phenotypes, includingcrwn1 crwn2and the viable triplecrwnmutants, are the ones with the highest average nuclear DNA density.

We hypothesize that the CRWN proteins are required for nuclear expansion after nuclear reformation in telophase [27–29], and that the loss of these proteins, especially in combination, results in an elevated nuclear DNA density. Evidence supporting this mechanism comes from a recent report demonstrating thatcrwn1 crwn2cotyledon nuclei expand more slowly than their wild type counterparts during the first 72 hours of seed germination, a period normally characterized by a ca. 10-fold expansion of nuclear size in the absence of endoreduplication [30]. Interestingly, the rate of contraction ofcrwn1 crwn2embryonic cotyledon nuclei during seed maturation is also reduced relative to wild type. These observations suggest that CRWN proteins are involved in remodeling nuclear structure during interphase in response to developmental and environmental cues. Similarly, a constraint in nuclear expansion associated with endoreduplication [20,31] could explain the limit on endopolyploid levels observed in high-ordercrwnmutants.

The large coiled-coil domains that comprise the central region of all four CRWN proteins point toward a structural role in the nucleus. Recent analysis based on secondary structure for analogues of Arabidopsis coiled-coil proteins indicates that CRWN proteins are candidates for paramyosin homologues [11]. Paramyosin is a structural protein found in invertebrate muscles, where it forms the core of thick filaments and bundles with myosin motors. Deficiency of paramyosin, encoded by theunc-15gene inC. elegans, leads to shortened, mis-formed and apparently fragile thick filaments in the nematode’s muscles [32]. The structural similarity to paramyosin suggests models for CRWN action as architectural components of the nucleoskeleton. Models of this type predict thatcrwnmutant nuclei would have a less sound structural foundation and be more prone to breakage or distortion by intracellular forces (e.g., exerted by the cytoskeleton or at programmed nuclear expansion/contraction transitions), as seen in animal cells when lamin is disrupted [33] or down-regulated [34]. The irregular margins and thin projections seen amongcrwn4nuclei are consistent with this structural integrity model. These predictions, however, are not consistent with the smaller, round nuclei incrwn1突变体不采用细长轴shapes typical of wild-type nuclei in many cell types. These considerations suggest alternative models wherein the CRWN1 protein might establish flexible hinge regions or expansion zones in the nucleoskeleton, facilitating nuclear size changes that accompany endopolyploidy and other developmental transitions. We note that both nucleoporin 136 [35,36] and LINC complex mutants [15] in Arabidopsis also lead to more spherical nuclear shapes, suggesting that CRWN proteins might interact with these complexes at the nuclear periphery.

Deficiency of CRWN proteins also affects chromocenter organization (Figures6and7). We previously reported that chromocenter number decreases approximately two-fold incrwn1 crwn2nuclei [5], and we confirmed these results here while extending our analysis to the entireCRWNgene family. One unexpected finding was the wide variation in chromocenter number incrwn4nuclei and the direct correlation between chromocenter number and nuclear size. The reduction in chromocenter number incrwn1 crwn2mutants, as well ascrwn4mutants with smaller nuclei, is consistent with aggregation of individual chromocenters. Thein situhybridization data shown in Figure7further support this conclusion. Further, we demonstrated that chromocenter organization was disrupted in largercrwn4nuclei as evidenced by the dispersed signals seen for the 5S RNA genes, and to a less extent, the centromere repeat arrays. Considering that chromocenters are localized primarily to the nuclear periphery [23,26] (see Additional file8: Movies S1-3) where CRWN proteins are also located [5–7], CRWN proteins might play a direct role in ensuring proper heterochromatin organization. In such models, CRWN1 and CRWN2 would act to prevent chromocenter aggregation and CRWN4 would exert a complementary effect to maintain chromocenter integrity.

The four distinct phenotypes displayed bycrwnmutants – reduced nuclear size, altered nuclear shape, elevated nuclear DNA density and abnormal organization of constitutive heterochromatin – highlight a functional connection among these different aspects of nuclear architecture. The lack of whole-plant phenotypes of Arabidopsiscrwn1andcrwn4mutants is remarkable in light of the dramatic nuclear changes occurring in these mutants and underscores plants’ plasticity in their ability to execute an apparently normal developmental program in spite of these nuclear changes. The diversity of CRWN proteins and the ability to work with viablecrwnmutants that exhibit dramatic nuclear phenotypes will facilitate the elucidation of the mechanisms through which these essential proteins exert their effects on nuclear organization.

Conclusions

This study addresses fundamental questions about how plant cells specify and control the morphology of their nuclei and its relationship with internal chromatin organization. We conducted a comprehensive reverse genetics study of theCRWN在拟南芥基因家族编码NMCP-class proteins implicated in nuclear morphology and organization. We demonstrated that CRWN proteins are essential for viability, and in the process, uncovered a surprisingly high degree of functional diversity among the CRWN proteins. CRWN1 and CRWN4 are the major determinants of nuclear size and shape, and we hypothesize that deficiency in CRWN proteins leads to defects in nuclear expansion and remodeling. One consequence of this deficiency is an increase in nuclear DNA density as endoreduplication levels are not affected except in the most extreme cases (e.g.,crwn1 crwn2and the viable triple mutants). Our findings also demonstrated that CRWN4 plays a role in maintenance of heterochromatin organization in interphase nuclei. The specificity of the nuclear morphological and higher-order chromatin organization defects seen incrwnmutants reveals the interplay between nuclear morphology and the three-dimensional packaging of the genome.

Methods

Plant materials and growth conditions

All T-DNA insertion alleles used in this study are from the SALK collection [17] in strain Columbia, and single mutant lines were originally obtained from the Arabidopsis Biological Resource Center (ABRC) at The Ohio State University. Plants were grown in long-day lighting conditions (16 h of light/8 h of dark) at 23°C on soil (Metro-Mix 360, SunGro, Vancouver) in environmental growth chambers. Genotyping of individual T-DNA alleles was performed by standard PCR using the following pairs of allele-specific primers: SALK_025347 (crwn1-1), 5′-TGC CTT CTC CTC GCT TTT CAA-3′ and 5′-TGC GTG AAT GGG AAA GAA AGT TG-3′; SALK_076653 (crwn2-1), 5′-GAA GCT CAT TGC TAG AGA AGG GG-3′ and 5′-AAC GCT GAT CGT TCA TGT TCC A-3′; SALK_099283 (crwn3-1), 5′-TTC TGC ATC TTG ACA CCA TCC AA-3′ and 5′-TCG TCG ACT AGT TAA CAA AAT CA-3′; SALK_079296 (crwn4-1), 5′-CGC AAA GCC TTC GAA GAC AAA-3′ and 5′-GCT TCA GCC AGC ATT TCA AGC-3′.

Phylogenetic tree construction

Amino acids similar to CRWN1 were downloaded from public databases (see Additional file1: Table S1). The program ClustalX was used to align the amino acid sequences. The tree in Figure1is based on an alignment of the region of highest conservation across all amino acid sequences, corresponding to the coiled-coil domains (amino acids 64 to 651 in CRWN1). A maximum likelihood tree was constructed using Phylip 3.69 with 1000 bootstrap replicates.

Diploid guard cell nuclear area measurement

Two-week old seedlings were harvested and fixed in 3:1 acetic acid:ethanol. Nuclei in the fixed tissue were stained using DAPI (10 μg/ml, 2 minutes), and guard cell nuclei were imaged using laser scanning confocal microscopy (Leica SP5). Images were taken at the focal plane with the maximum nuclear area, and the resulting images were processed using ImageJ software.

Leaf nuclei isolation and imaging

Nuclei were isolated from the fifth true leaf of adult plants harvested after initiation of flowering stem elongation (stem height ≥ vegetative rosette diameter). Therefore, the tissues were developmentally matched across the different genotypes. Mesophyll cells predominated but other cell types were present. Each harvested leaf was bisected and one half used for the nuclear area measurement, while the remaining half leaf was processed for flow cytometry measurements (see below). Leaf tissue was fixed using a 3:1 acetic acid:ethanol solution and tissues were rehydrated in 100 mM sodium citrate buffer pH 4.8 for 15 min followed by incubation in digestion buffer (0.03% cytohelicase, 0.03% pectolyase, and 0.03% cellulase Onozuka RS in 100 mM sodium citrate buffer pH 4.8) for 2 hours at 37°C. Digested tissue was carefully homogenized by pipetting, centrifuged briefly at low speed, and resuspended with 100 mM sodium citrate buffer pH 4.8; this cycle was repeated three times and the final pellet was resuspended in 3:1 acetic acid:ethanol. The resulting suspension of nuclei were pipetted onto microscope slides, dried for ca. 1 min, and stained with 10 μg/ml 4′,6-diamidino-2-phenylindole (DAPI). A Leica DM 5500 epifluorescence microscope was used to image the nuclei, and the nuclear area was measured from digital images using ImageJ software after manual tracing of nuclear boundaries. Note that the chromocenter number versus leaf cell nuclear area scatter plots shown in Figure6A were generated in a separate experiment from the one shown in Figure4, but developmentally matched leaf tissues were harvested as described above.

Aggregation index measurement

Tissue from adult leaves was harvested and prepared as described for FISH (see below). Rather than performing thein situhybridization step, nuclei were stained with DAPI and imaged using optical sectioning microcopy. Projections of the processed images were analyzed using ImageJ software to identify chromocenters. Briefly, the images were manually manipulated when necessary to adjust the local threshold and chromocenter area and number were assigned using the Analyze Particle function of the software. The aggregation index (AI) was calculated using the following equation: AI = Σ (Si/Stotal)2; where i = 1, …, n; Si= the area of chromocenter i; Stotal= the total area of all chromocenters in the nucleus.

Flow cytometry

Bisected tissue from the fifth true leaf of adult plants were harvested (see above) and immersed in magnesium sulfate buffer [37] and chopped with razor blades in a petri dish. The resulting suspension was filtered through a nylon mesh (diameter = 30 μm; Partec Cell Trics®, Münster, Germany). The nuclear suspension was incubated with RNAse A (Ribonuclease A, from bovine pancreas, Sigma, St. Louis, MO, USA) (50 μg/ml) on ice for 15 min and stained with propidium iodide (50 μl/ml) in the dark for 6 hours. Average ploidy level for each genotype was calculated based on the peaks generated from an analytical flow cytometer (Accuri 6 model, Accuri cytometers, Ann Arbor, MI, USA).

Fluorescentin situhybridization (FISH)

Fully expanded adult leaf tissue was harvested less than a week after flowering stem elongation, and fixed in Buffer A [38] with 4% formaldehyde at room temperature with agitation for >1 hour. After rinsing with Buffer A, the tissue was chopped repeatedly with razor blades until a homogenous texture was achieved. A clear nuclear suspension was pipetted from the leaf debris and used for fluorescencein situhybridization as described by Golubovskaya et al. (2002) [38]. The centromere probe 5′- Cy5-GGTTGCGGTTTAAGTTCTTATACTCAATC -3′ was synthesized by Integrated DNA Technologies (Coralsville, IA, USA), and the 5S probe was amplified from genomic DNA using primers 5′-CTNCCNGGNAGNTCACCC-3′ and 5′-CCTNGTGNTGNANCCCTC-3′, followed by labeling using a nick translation protocol and Rhodamine labeled dCTP (Roche; Indianapolis, IN, USA).

References

  1. Meier I: The plant nuclear envelope. Cell Mol Life Sci. 2001, 58 (12–13): 1774-1780.

    PubMedCASArticleGoogle Scholar

  2. Gruenbaum Y, Goldman RD, Meyuhas R, Mills E, Margalit A, Fridkin A, Dayani Y, Prokocimer M, Enosh A: The nuclear lamina and its functions in the nucleus. Int Rev Cytol. 2003, 226: 1-62.

    PubMedCASArticleGoogle Scholar

  3. Graumann K, Evans DE: The plant nuclear envelope in focus. Biochem Soc Trans. 2010, 38 (Pt 1): 307-311.

    PubMedCASArticleGoogle Scholar

  4. Rose A: Open mitosis. Nuclear envelope dynamics. Edited by: Verma DPS, Hong Z. Berlin Heidelberg: Springer; 2007,

    Google Scholar

  5. Dittmer TA, Stacey NJ, Sugimoto-Shirasu K, Richards EJ: Little nuclei genes affecting nuclear morphology in Arabidopsis thaliana. Plant Cell. 2007, 19 (9): 2793-2803. 10.1105/tpc.107.053231.

    PubMedCASPubMed CentralArticleGoogle Scholar

  6. Dittmer TA, Richards EJ: Role of LINC proteins in plant nuclear morphology. Plant Signal Behav. 2008, 3 (7): 485-487. 10.4161/psb.3.7.5682.

    PubMedPubMed CentralArticleGoogle Scholar

  7. Sakamoto Y, Takagi S: LITTLE NUCLEI 1 and 4 regulate nuclear morphology in Arabidopsis thaliana. Plant Cell Physiol. 2013, 54 (4): 622-633. 10.1093/pcp/pct031.

    PubMedCASArticleGoogle Scholar

  8. Masuda K, Xu ZJ, Takahashi S, Ito A, Ono M, Nomura K, Inoue M: Peripheral framework of carrot cell nucleus contains a novel protein predicted to exhibit a long alpha-helical domain. Exp Cell Res. 1997, 232 (1): 173-181. 10.1006/excr.1997.3531.

    PubMedCASArticleGoogle Scholar

  9. Ciska M, Masuda K, Moreno Diaz de la Espina S: Lamin-like analogues in plants: the characterization of NMCP1 in Allium cepa. J Exp Bot. 2013, 64 (6): 1553-1564. 10.1093/jxb/ert020.

    PubMedCASPubMed CentralArticleGoogle Scholar

  10. Kimura Y, Kuroda C, Masuda K: Differential nuclear envelope assembly at the end of mitosis in suspension-cultured Apium graveolens cells. Chromosoma. 2010, 119 (2): 195-204. 10.1007/s00412-009-0248-y.

    PubMedArticleGoogle Scholar

  11. Gardiner J, Overall R, Marc J: Putative Arabidopsis homologues of metazoan coiled-coil cytoskeletal proteins. Cell Biol Int. 2011, 35 (8): 767-774. 10.1042/CBI20100719.

    PubMedCASArticleGoogle Scholar

  12. Razafsky D, Hodzic D: Bringing KASH under the SUN: the many faces of nucleo-cytoskeletal connections. J Cell Biol. 2009, 186 (4): 461-472. 10.1083/jcb.200906068.

    PubMedCASPubMed CentralArticleGoogle Scholar

  13. Sosa BA, Rothballer A, Kutay U, Schwartz TU: LINC complexes form by binding of three KASH peptides to domain interfaces of trimeric SUN proteins. Cell. 2012, 149 (5): 1035-1047. 10.1016/j.cell.2012.03.046.

    PubMedCASPubMed CentralArticleGoogle Scholar

  14. Tapley EC, Starr DA: Connecting the nucleus to the cytoskeleton by SUN-KASH bridges across the nuclear envelope. Curr Opin Cell Biol. 2013, 25 (1): 57-62. 10.1016/j.ceb.2012.10.014.

    PubMedCASPubMed CentralArticleGoogle Scholar

  15. Zhou X, Graumann K, Evans DE, Meier I: Novel plant SUN-KASH bridges are involved in RanGAP anchoring and nuclear shape determination. J Cell Biol. 2012, 196 (2): 203-211. 10.1083/jcb.201108098.

    PubMedCASPubMed CentralArticleGoogle Scholar

  16. Graumann K, Evans DE: Plant SUN domain proteins: components of putative plant LINC complexes?. Plant Signal Behav. 2010, 5 (2): 154-156. 10.4161/psb.5.2.10458.

    PubMedCASPubMed CentralArticleGoogle Scholar

  17. 阿隆索JM,开朗,Leisse TJ,金正日CJ,陈H, Shinn P, Stevenson DK, Zimmerman J, Barajas P, Cheuk R, et al: Genome-wide insertional mutagenesis of Arabidopsis thaliana. Science. 2003, 301 (5633): 653-657. 10.1126/science.1086391.

    PubMedArticleGoogle Scholar

  18. Winter D, Vinegar B, Nahal H, Ammar R, Wilson GV, Provart NJ: An “Electronic Fluorescent Pictograph” browser for exploring and analyzing large-scale biological data sets. PLoS One. 2007, 2 (8): e718. 10.1371/journal.pone.0000718.

    PubMedPubMed CentralArticleGoogle Scholar

  19. Chytilova E, Macas J, Sliwinska E, Rafelski SM, Lambert GM, Galbraith DW: Nuclear dynamics in Arabidopsis thaliana. Mol Biol Cell. 2000, 11 (8): 2733-2741. 10.1091/mbc.11.8.2733.

    PubMedCASPubMed CentralArticleGoogle Scholar

  20. Jovtchev G, Schubert V, Meister A, Barow M, Schubert I: Nuclear DNA content and nuclear and cell volume are positively correlated in angiosperms. Cytogenet Genome Res. 2006, 114 (1): 77-82. 10.1159/000091932.

    PubMedCASArticleGoogle Scholar

  21. Melaragno JE, Mehrotra B, Coleman AW: Relationship between endopolyploidy and cell size in epidermal tissue of Arabidopsis. Plant Cell. 1993, 5 (11): 1661-1668.

    PubMedPubMed CentralArticleGoogle Scholar

  22. Fransz P, Soppe W, Schubert I: Heterochromatin in interphase nuclei of Arabidopsis thaliana. Chromosome Res. 2003, 11 (3): 227-240. 10.1023/A:1022835825899.

    PubMedCASArticleGoogle Scholar

  23. Fransz P, De Jong JH, Lysak M, Castiglione MR, Schubert I: Interphase chromosomes in Arabidopsis are organized as well defined chromocenters from which euchromatin loops emanate. Proc Natl Acad Sci U S A. 2002, 99 (22): 14584-14589. 10.1073/pnas.212325299.

    PubMedCASPubMed CentralArticleGoogle Scholar

  24. Schubert V, Berr A, Meister A: Interphase chromatin organisation in Arabidopsis nuclei: constraints versus randomness. Chromosoma. 2012, 121 (4): 369-387. 10.1007/s00412-012-0367-8.

    PubMedCASArticleGoogle Scholar

  25. Schubert V, Klatte M, Pecinka A, Meister A, Jasencakova Z, Schubert I: Sister chromatids are often incompletely aligned in meristematic and endopolyploid interphase nuclei of Arabidopsis thaliana. Genetics. 2006, 172 (1): 467-475.

    PubMedCASPubMed CentralArticleGoogle Scholar

  26. 方Y,斯佩克特DL:着丝点定位和动力学amics in living Arabidopsis plants. Mol Biol Cell. 2005, 16 (12): 5710-5718. 10.1091/mbc.E05-08-0706.

    PubMedCASPubMed CentralArticleGoogle Scholar

  27. Bradley MV: Cell and nuclear size in relation to polysomaty and the nuclear cycle. Am J Bot. 1954, 41 (5): 398-402. 10.2307/2438729.

    ArticleGoogle Scholar

  28. Burke B: The nuclear envelope: filling in gaps. Nat Cell Biol. 2001, 3 (12): E273-E274. 10.1038/ncb1201-e273.

    PubMedCASArticleGoogle Scholar

  29. Levy DL, Heald R: Nuclear size is regulated by importin alpha and Ntf2 in Xenopus. Cell. 2010, 143 (2): 288-298. 10.1016/j.cell.2010.09.012.

    PubMedCASPubMed CentralArticleGoogle Scholar

  30. van Zanten M, Koini MA, Geyer R, Liu Y, Brambilla V, Bartels D, Koornneef M, Fransz P, Soppe WJ: Seed maturation in Arabidopsis thaliana is characterized by nuclear size reduction and increased chromatin condensation. Proc Natl Acad Sci U S A. 2011, 108 (50): 20219-20224. 10.1073/pnas.1117726108.

    PubMedCASPubMed CentralArticleGoogle Scholar

  31. Sugimoto-Shirasu K, Roberts K: “Big it up”: endoreduplication and cell-size control in plants. Curr Opin Plant Biol. 2003, 6 (6): 544-553. 10.1016/j.pbi.2003.09.009.

    PubMedCASArticleGoogle Scholar

  32. Epstein HF, Casey DL, Ortiz I: Myosin and paramyosin of Caenorhabditis elegans embryos assemble into nascent structures distinct from thick filaments and multi-filament assemblages. J Cell Biol. 1993, 122 (4): 845-858. 10.1083/jcb.122.4.845.

    PubMedCASArticleGoogle Scholar

  33. Dechat T, Pfleghaar K, Sengupta K, Shimi T, Shumaker DK, Solimando L, Goldman RD: Nuclear lamins: major factors in the structural organization and function of the nucleus and chromatin. Genes Dev. 2008, 22 (7): 832-853. 10.1101/gad.1652708.

    PubMedCASPubMed CentralArticleGoogle Scholar

  34. Friedl P, Wolf K, Lammerding J: Nuclear mechanics during cell migration. Curr Opin Cell Biol. 2011, 23 (1): 55-64. 10.1016/j.ceb.2010.10.015.

    PubMedCASPubMed CentralArticleGoogle Scholar

  35. 田村K,深尾三硕Y, Iwamoto M, Haraguchi T, Hara-Nishimura I: Identification and characterization of nuclear pore complex components in Arabidopsis thaliana. Plant Cell. 2010, 22 (12): 4084-4097. 10.1105/tpc.110.079947.

    PubMedCASPubMed CentralArticleGoogle Scholar

  36. Tamura K, Hara-Nishimura I: Involvement of the nuclear pore complex in morphology of the plant nucleus. Nucleus. 2011, 2 (3): 168-172. 10.4161/nucl.2.3.16175.

    PubMedPubMed CentralArticleGoogle Scholar

  37. Arumuganathan K,厄尔艾德:核估计DNA content of plants by flow cytometry. Plant Mol Biol Report. 1991, 9: 229-233. 10.1007/BF02672073.

    CASArticleGoogle Scholar

  38. Golubovskaya IN, Harper LC, Pawlowski WP, Schichnes D, Cande WZ: The pam1 gene is required for meiotic bouquet formation and efficient homologous synapsis in maize (Zea mays L). Genetics. 2002, 162 (4): 1979-1993.

    PubMedCASPubMed CentralGoogle Scholar
