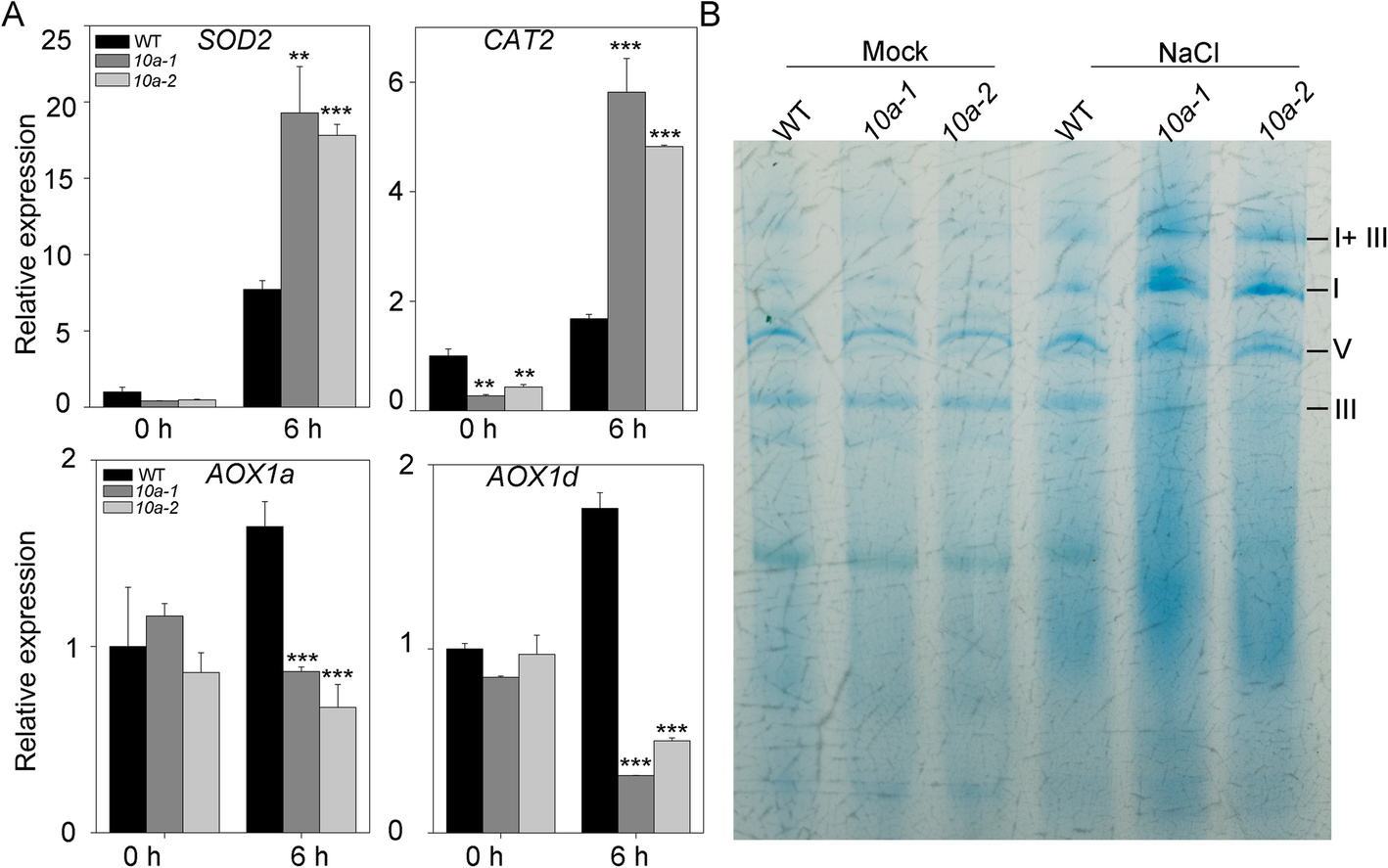

Fig. 6 From:ABC1K10a, an atypical kinase, functions in plant salt stress tolerance Dysfunction of the mitochondria inabc1k10amutants under salt stress. (a) Expression of the oxidative stress related genes. Expression ofSOD2,CAT2,AOX1aandAOX1din plants treated with 200 mM NaCl was determined by qRT-PCR. Error bars indicate ± SD (n = 3). Asterisks indicate statistically significant differences with the corresponding wild type (**P < 0.01 and ***P < 0.001,t-test). (b) The abundance of the mitochondrial complexes in wild type and the10amutants. Crude mitochondrial membranes were extracted from 5-day-old seedlings grown on MS medium or MS medium supplemented 100 mM NaCl. The mitochondrial complexes were separated by Blue Native-PAGE and stained with coomassie brilliant blue Back to article page
